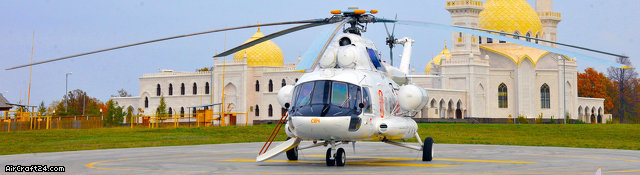

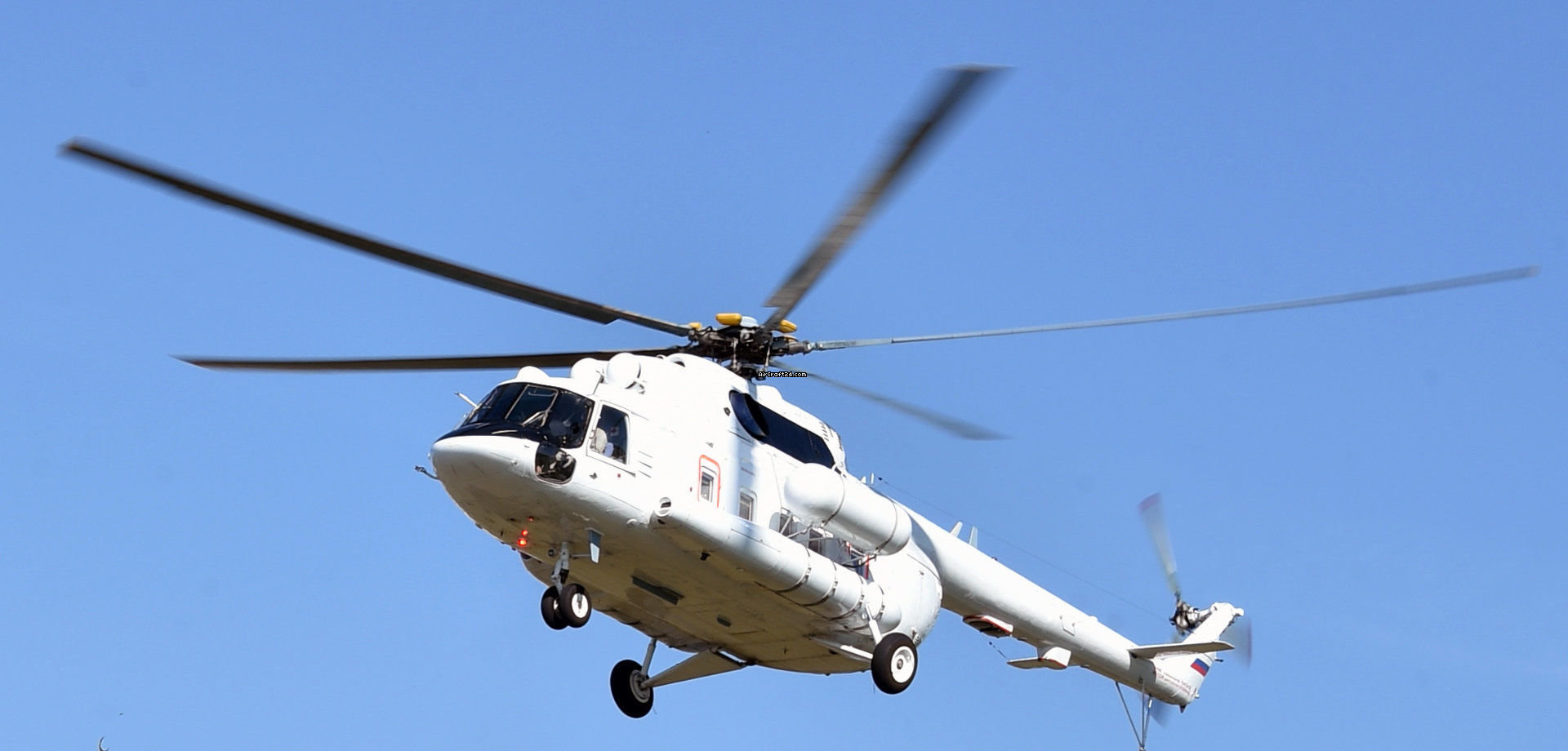

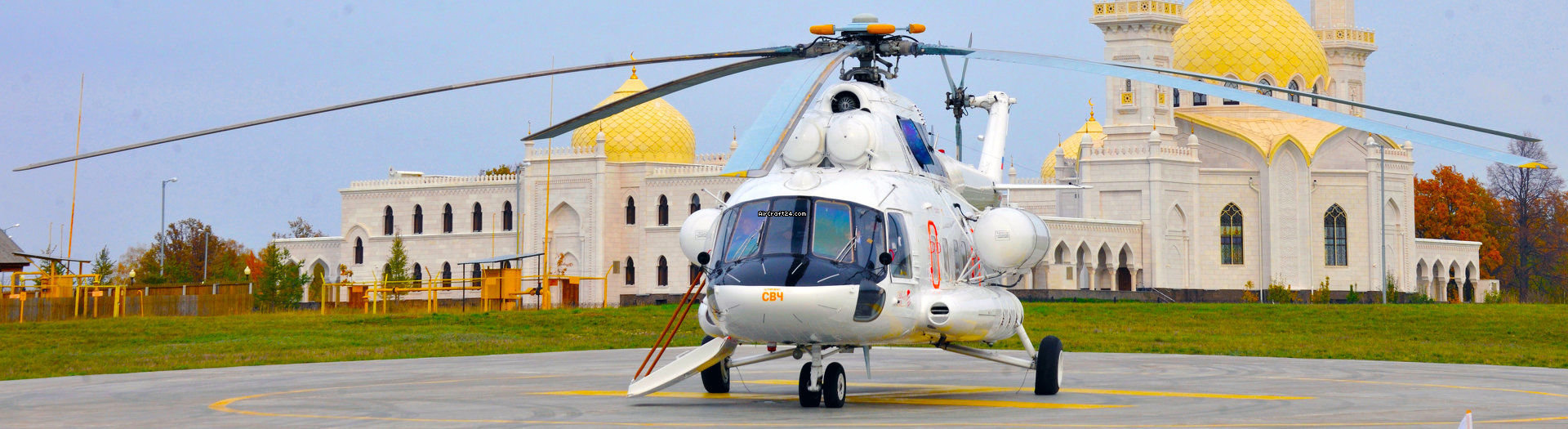

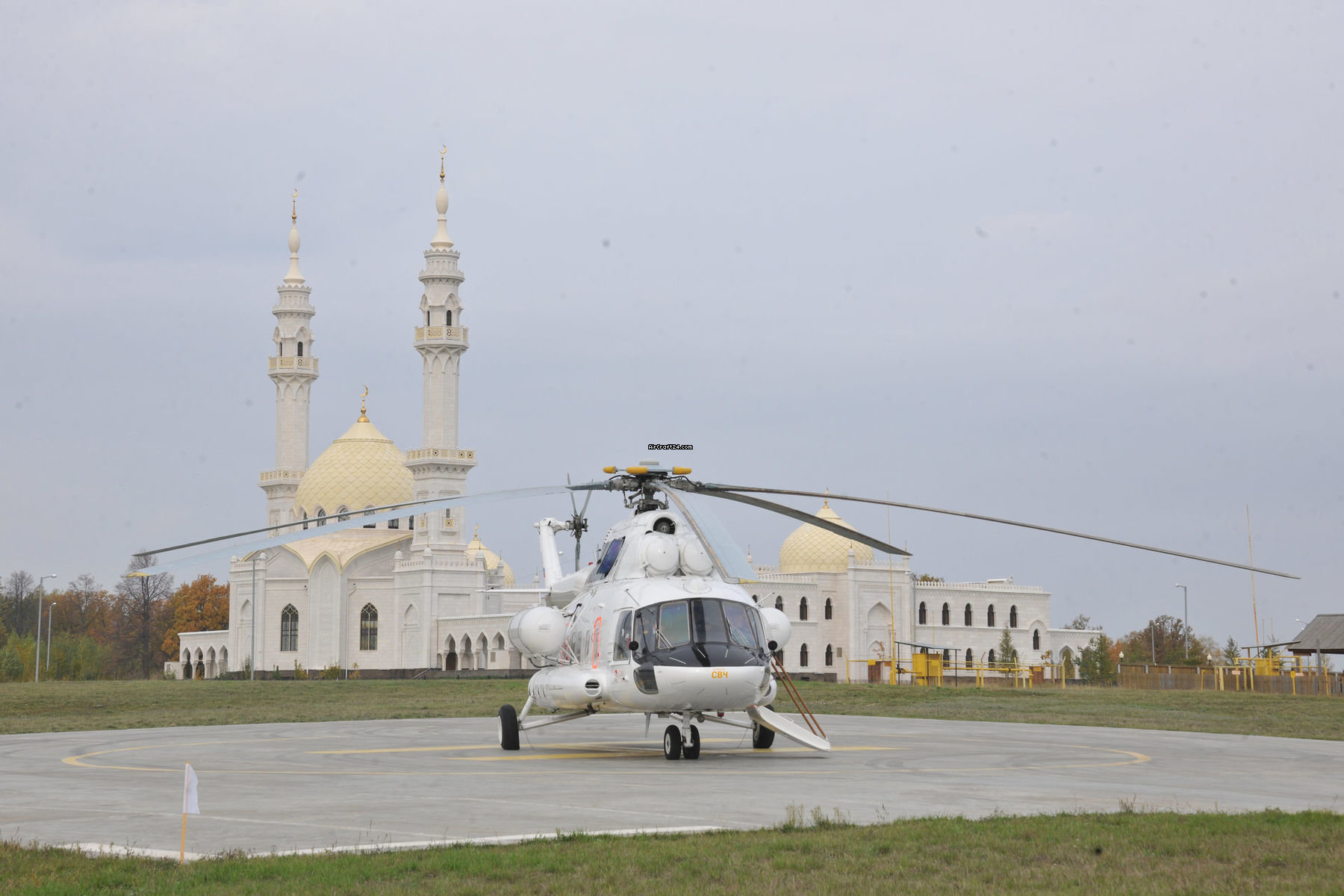

Mil Mi-8MTV-1 VIP

[VENDIDO]
US$ 9.200.000

Resumen

Vista general
Tipo:	Helicóptero
Fabricante:	Mil
Modelo:	Mi-8MTV-1 VIP
Año de construcción:	2009
Cualidades:	IFR autorizado IFR equipado industrial autorizada EU-OPS 1 autorizada
Ultimo chequeo annual:	5/2018
Lugar:	Rusia
Tiempo total (TTAF):	1444 h
Precio:	US$ 9.200.000 (~ € 8.710.472)[VENDIDO]
Todos detalles

Oferente
Aircraft Tools Consulting Ltd. Presnensky Val st., 27 123557 Moscow Rusia Tel.: +7 (495) 769 4242 Móvil: +7 (916) 650 4707
Contacte el oferente




Mostra todos 20 imagenes

Detalles

Vista general
Tipo:	Helicóptero
Fabricante:	Mil
Modelo:	Mi-8MTV-1 VIP
Año de construcción:	2009
Cualidades:	IFR autorizado IFR equipado industrial autorizada EU-OPS 1 autorizada
Ultimo chequeo annual:	5/2018
Lugar:	Rusia
Tiempo total (TTAF):	1444 h
Precio:	US$ 9.200.000 (~ € 8.710.472)[VENDIDO]
Número de pasajeros:	13
Aterrizajes:	2731

Motores
Número de motores:	3
Fabricante/tipo:	Klimov TV3-117VM	Klimov TV3-117VM	SAFIR 5K/GM1
Efecto:	2200 PS	2200 PS	25-50 kW
Última revisión general:	04/2018	04/2018	04/2018

Describcíon/Detalles motores

The Klimov TV3-117 is a Russian gas turbine aero engine. It is used in most medium lift, utility, and attack helicopters designed by the Mil and Kamov design bureaus. The TV3-117 turboshaft engine was developed in 1974. Later the Klimov TV3-117 was installed on 95% of all helicopters designed by Mil and Kamov Engineering Centre. The engine has been produced in many variants.

("VM" stands for "high altitude, modernized") – for Mi-28 helicopters and later installed also on Mi-8MT/Mi-171 models. This engine features an automatic switch to emergency power. It was awarded type certificates by the IAC Aviation Registry, India, the Republic of China and the People's Republic of China. Mass-produced since 1986

Aviación

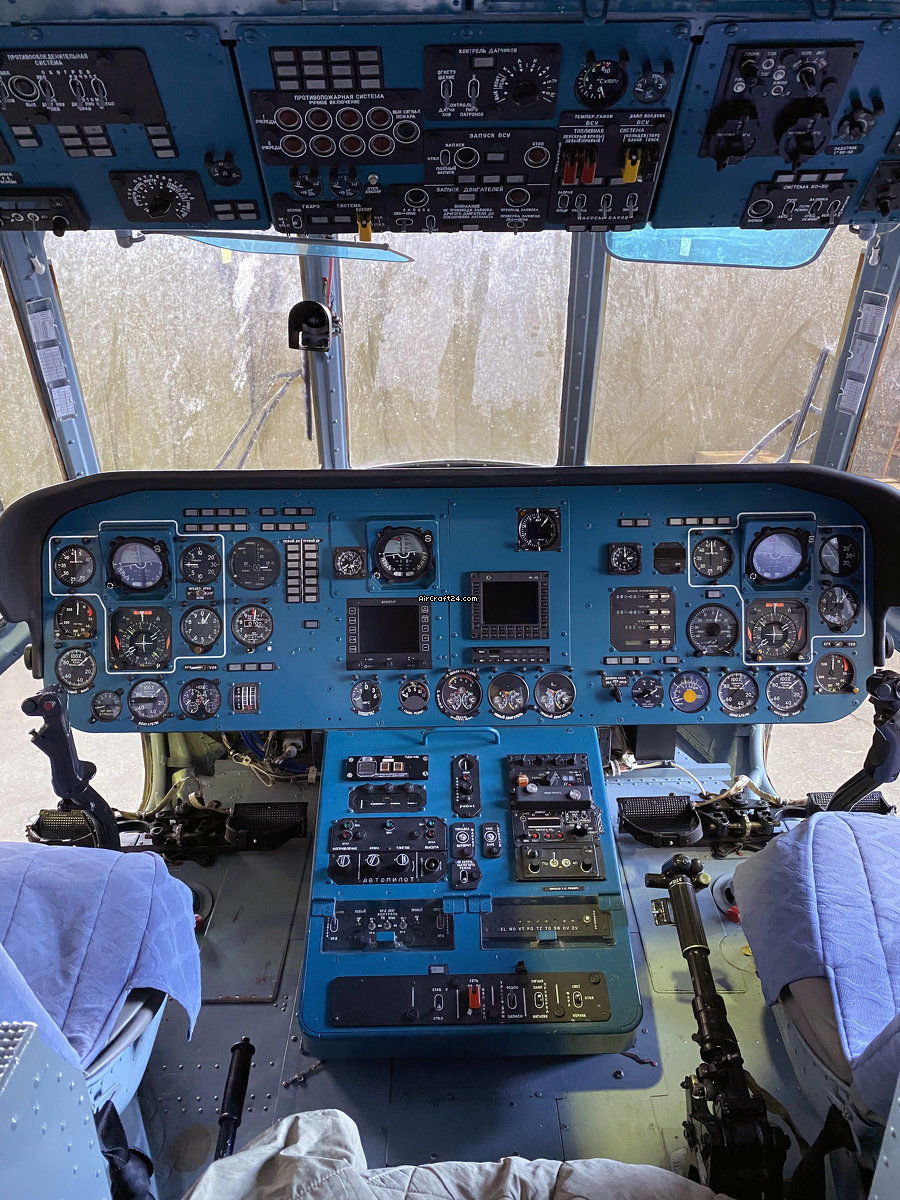

Basic radio-electronic (including non-standard) equipment:
- electronic altimeter VEM-72PB-3A with a metric scale (height display accuracy - 5 meters);
- meteorological radar "Kontur-10Ts" (observation range of zones of thunderstorm activity and powerful cumulus clouds - up to 200 km);
- 2 VHF radio stations "Orlan-85ST" (frequency grid 8.33 / 25 kHz, frequency range - 118 ... 137.9917 MHz);
- emergency radio beacon ARM-406P (frequencies - 121.5 MHz and 406.025 MHz, battery life - at least 48 and 24 hours, respectively);
- SRPBZ "VNIIRA-Navigator" (operating and signaling modes - "Dangerous descent", "Earth, ground", "Do not go down", "Low, ground", "Ground ahead", "Dangerous, ground", "Pull up", "Attention, earth");
- device for measuring and displaying air data AD32 (display resolution - 100 feet, range - 0 ... 30,000 feet);
- navigation system ABRIS (error in determining the location of the helicopter - no more than 100 m with a probability of 0.95), coupled with a rangefinder, SNS, locator, short-range navigation equipment, transponder, ARC, heading system, radio altimeter and VEM
